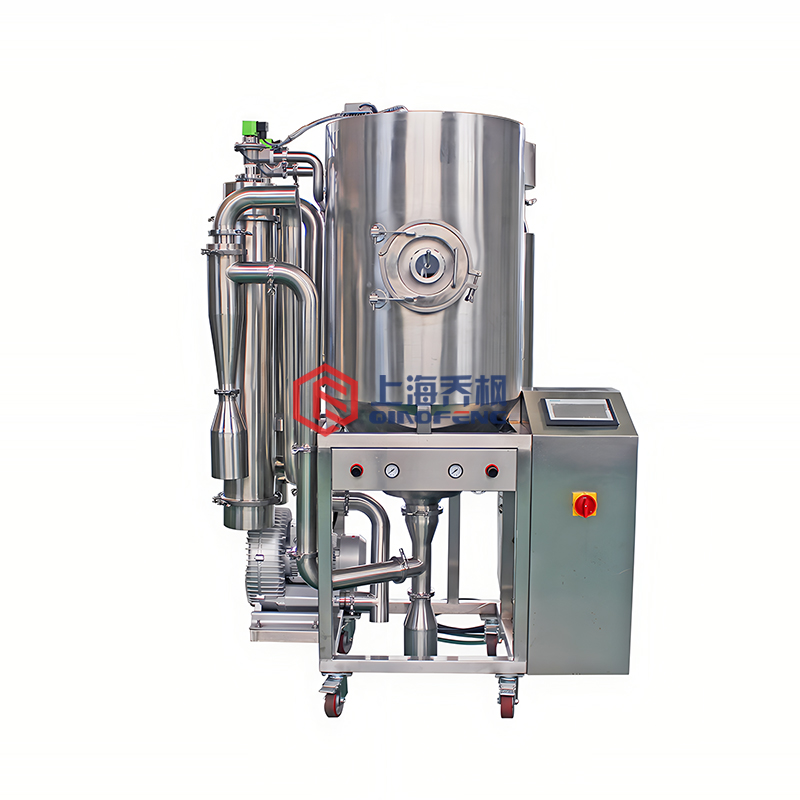

| Device name: | Ultrafine powder spray dryer |
| Equipment type: | qfn - cx - 3 |
| Equipment specifications: | 3Kg/h (support customized) |
| Test machine: | Support test making experiment |
| Scope of application: | Powdered and granular solid products are produced in solution, emulsion, suspension and paste liquid raw materials. |
| Application scenario: | Scientific research, chemical industry, food, pesticide, medicine, biological industry, etc. |
| Is it guaranteed? | National three year warranty |
| Telephone: | 17317246351 |
1. features of equipment:
2． Equipment advantage
Two dimensional graph of 4.QFN-PWCX-NZY8VER2018-075A atomization system
Line graph reading
1 is the spray amount of a nozzle (l/hr)
2 the red line represents compressed air PA (MPA), the blue line represents the liquid pressure, PW (MPA), and the green line represents the QA/QW vapor / water ratio.
3. the number in the figure shows that the two-dimensional curve of 4.QFN-PWCX-NZY8VER2018-075A type atomization system is determined by
Line graph reading
1 is the spray amount of a nozzle (l/hr)
2 the red line represents compressed air PA (MPA), the blue line represents the liquid pressure, PW (MPA), and the green line represents the QA/QW vapor / water ratio.
3.
The numbers inside represent the average particle size (micron) of SAUTER measured by the detector.
Type QFN-CX-NZY8VER2018-075A atomization system:
For example, if the final average dry powder particle diameter is about 3 microns, the known condition is that the solid content of the feed solution is 10%.
The required average wet droplet size is 3/0.1=30 microns. The liquid intake is about 8L/hr, compressed air needs 0.2MPA, and the intersection point is about 30 microns.
If need other size diameter of droplets, first determine the amount of processing, a vertical axis, find the approximate size, and then find the point of intersection, find the pressure of compressed air.
Note: according to the density of material, viscosity and other parameters, the average diameter of droplet should be 30 + 3, [-27,33], 3.
5.Equipment configuration
|
system |
number |
parts |
brand |
Model |
Number |
Remarks |
|
electric |
One |
Electronic control system of QFN-CX series atomizing dryer |
Maple Maple |
/ |
1 sets |
See device parameters |
|
Two |
Switching Mode Power Supply |
The Ming and Wei |
you - 100 - 24 |
The 1 |
/ |
|
|
Three |
Air switch |
chint |
DZ47 series |
Some |
/ |
|
|
Four |
Small relay |
chint |
JZX-22F (D) /2Z |
Some |
/ |
|
|
JZX-22F (D) /4Z |
||||||
|
Five |
Solid state relay |
Meg |
/ |
1 sets |
/ |
|
|
Six |
Frequency converter |
Taida |
/ |
1 sets |
2.2kw |
|
|
Seven |
Digital controller |
Taida |
DTC-1000 series |
Some |
/ |
|
|
Eight |
Power switch |
|
|
The 1 |
|
|
|
Nine |
Indicator light |
chint |
nd16 - 22ds / 4 |
The 1 |
Red, 220VAC |
|
|
Ten |
sensor |
Famous Shanghai |
wzp - 241 |
3 roots |
/ |
|
|
Eleven |
Terminal terminal |
/ |
/ |
Some |
/ |
|
|
Twelve |
Guide |
/ |
/ |
Some |
/ |
|
|
Thirteen |
Groove |
/ |
/ |
Some |
Bottom hole |
|
|
Fourteen |
wire |
Sails |
/ |
/ |
/ |
|
|
Fifteen |
Electric box |
Maple Maple |
Customized |
The 1 |
sus304 |
|
|
transport |
One |
Peristaltic pump |
Hui Yu |
yz15 13a |
1 sets |
/ |
|
Two |
Feed pipe |
/ |
|
/ |
/ |
|
|
Fog |
One |
Atomization system |
Maple Maple |
Customized |
1 sets |
See device parameters |
|
Two |
Pressure gauge |
AirTAC |
0-1MPA |
|
/ |
|
|
Three |
Circulating pump |
/ |
/ |
One |
/ |
|
|
Three |
Air compressor |
Dolphin |
0-0.8MPA |
1 sets |
/ |
|
|
dry |
One |
Dry pagoda |
Maple Maple |
/ |
The 1 |
See device parameters |
|
Two |
Hot air distributor and volute (matching of atomization system) |
Maple Maple |
Customized |
The 1 |
Three hundred and four |
|
|
yield |
One |
cyclone |
Maple Maple |
Customized |
One |
Three hundred and four |
|
Two |
Dust collector (optional) |
Maple Maple |
Customized |
/ |
See device parameters |
|
|
Three |
Collecting bucket |
Maple Maple |
Customized |
Three |
Three hundred and four |
|
|
Four |
Feed valve |
Warm letter |
φ63 / 108mm |
Three |
Health level 304 |
|
|
Hot air circulation system |
One |
Fan |
/ |
/ |
1 sets |
See device parameters |
|
Two |
heater |
Maple Maple |
Customized |
|
See device parameters |
6.Equipment parameters
|
Ultrafine powder spray dryer |
qfn -CX-3 |
qfn -CX-Five |
qfn -CX-Ten |
|
Water evaporation |
3Kg/h |
5Kg/h |
10Kg/h |
|
Minimum feed volume |
80ml |
80ml |
120ml |
|
The diameter of the drying chamber (mm) |
￠600 |
￠800 |
￠1200 |
|
Height of dry tower (mm) |
￠800 |
￠800 |
￠1500 |
|
Atomization structure |
Single hole eccentric atomizing structure (QFN-CX-NZY8VER2018-1A) |
||
|
Electronic control system |
Jo Feng superfine powder atomization system only (QFN-CX-ES-VER2018-1A) |
||
|
Maximum inlet temperature (centigrade) |
Two hundred and sixty |
||
|
Standard of main electrical accessories (including PLC, analog module, touch screen) (optional) |
Control module (standard), delta control module, SIEMENS control module, Germany. |
||
|
Standard of electrical auxiliary accessories selection (including Contactors) (optional) |
CHINT (standard): Deli, Schneider. |
||
|
Contact with the material (optional) |
?sus304 (標(biāo)準(zhǔn)) □sus316 □其他 _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ |
||
|
Exhaust reutilization, energy saving over 30% (optional) |
Assembly (standard) / assembly |
||
|
Atomizing nozzle (using diamond coating) |
(SUS304) (standard) SUS316 (standard) silicon carbide (standard) diamond |
||
|
Equipment warranty |
1 years (standard, above must be charged a certain maintenance cost) for 2 years, 3 years. |
||
|
Heater capacity |
6kw |
15kw |
25kw |
|
Air blower [power (kw), air volume (m /min)] |
nothing |
nothing |
[0.25,9.5] |
|
Draft fan [power (kw), air volume (m /h)] |
[1.5，250] |
[2.2，300] |
[2.2，300] |
|
Compressor [power (kw), air volume (L /min)] |
[0.58，108] |
[1.5，250] |
[1.5，250] |
|
Electric power (installed capacity) |
8kw |
30kw |
40kw |
|
Thermal insulation material |
50mm glass fiber insulated cotton |
50mm glass fiber insulated cotton |
50mm glass fiber insulated cotton |
|
Pulse bag dust collector (optional) |
Polytetrafluoroethylene film mulching material |
||
|
4 |
4 |
9 |
|
|
Shape size (mm) (L x W x H) |
1600×1400×1800 |
2200×1600×2200 |
2600×1200×2500 |
|
Installation weight (Reference) |
500 pounds |
450kg |
1000kg |
|
Power supply |
380V/-3: it can be customized according to different national standards. |
Note 1: water evaporation at inlet temperature of 250 C.
2: for more evaporation equipment, please inquire online or call our company.
Tel: 17317246351
Mailbox: sales@qfn17.com
URL: http://m.nnxt.net.cn
Address: Shanghai fengxian canal north road no. 1185
